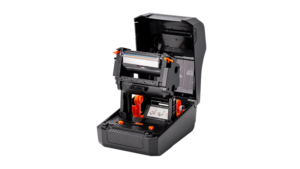

Bixolon XD5-40T thermal Printer

The XD5-40T is a mid-tier 4-inch (118 mm) thermal transfer desktop label printer that features a tool-less design for simple maintenance, multiple wired and wireless interfaces, optional mono LCD, and supporting half-inch and full-inch core ribbon (74 m and 300 m).

The XD5-40t is suitable for asset marking, price management, and manufacturing labeling that requires robust and exceptional print quality.

Features

• Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
• Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
• Optional 300 dpi high-resolution choice for fine print quality
• Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.0 (MFi certified)
• Extended memory space up to 256MB SDRAM, 256MB Flash
• A suite of SDKs for major operating systems
• Building a standalone label printing solution using XI, BIXOLON’s BASIC programming Interpreter
• Supports UHF RFID print and encode capability plus minimum encoding inlay pitch of 0.6 inch (16 mm) inlay
• An adjustable media guide and a holder
• Compact clamshell design with intuitive menu buttons and optional LCD Display
• Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
• Field-installable Peeler and Auto Cutter
• Twin funtion™ supported: Copy printer settings and data by USB
• Compatible with label design software;
• BIXOLON’s Label Artist™ and Seagull’s BarTender
• XPM™ & XCM™ – Web-based printer management software and connection app
